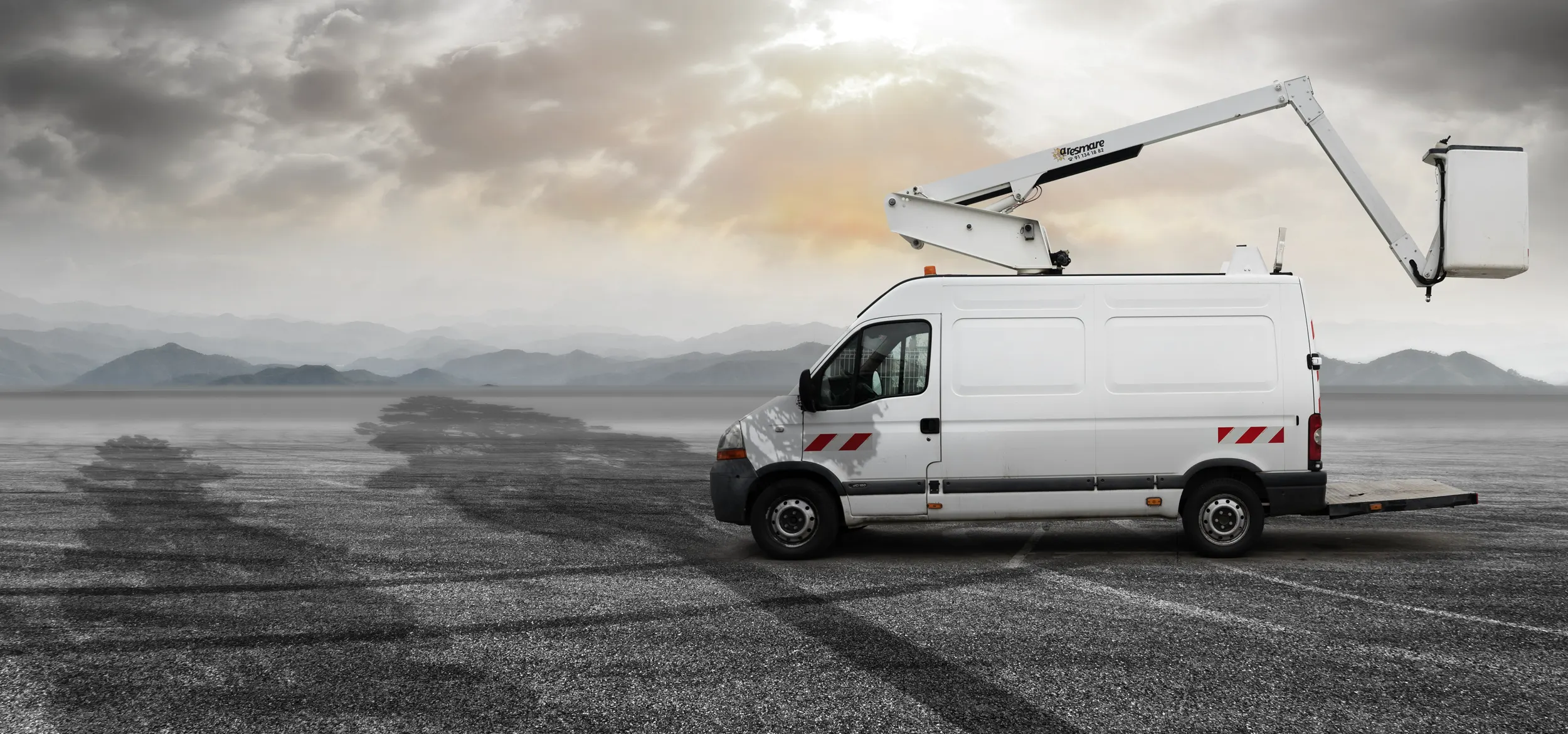

Bucket Truck
Model AR110
Efficiency in maintenance works
Model 110 is mounted without outriggers and with a single-seater bucket for a capacity of up to 120 kg. It can reach work heights of 11.30 m with a rotation of 360º, enabling access to a greater work area.
Bucket Truck
Model AR110
Efficiency in maintenance works
Model 110 is mounted without outriggers and with a single-seater bucket for a capacity of up to 120 kg. It can reach work heights of 11.30 m with a rotation of 360º, enabling access to a greater work area.
- Work heights of up to 11.30 m
- Lightweight, sturdy fibreglass bucket
- Bucket capacity: 120 kg (1 person)
- Minimum preventive maintenance
- 360º rotation
- Hydraulic levelling of bucket
- Exclusive spray painting system (SPPA) of each part prior to assembly
- Electric emergency pump
- Two controls, in the bucket and on the ground, fully electrically operated
- Stop, start and emergency pump from any control
- Remote control for ground operation
- Mounted without outriggers
- Mounting design maximising load clearance
- Aluminium inner boom
- Hydraulic levelling with bucket and ground controls
- Bucket overload sensor with acoustic warning
- Main operating switch in cabin
- Stop / Start / Emergency pump from any control
- Safety harness attachment
- Durable adjustable slide pads
- Interior line for air intake in the bucket
- Electrical interior line with socket in the bucket for 12 or 220 V
- Interior line for water outlet in the bucket
- Work heights of up to 11.30 m
- Lightweight, sturdy fibreglass bucket
- Bucket capacity: 120 kg (1 person)
- Minimum preventive maintenance
- 360º rotation
- Hydraulic levelling of bucket
- Exclusive spray painting system (SPPA) of each part prior to assembly
- Electric emergency pump
- Two controls, in the bucket and on the ground, fully electrically operated
- Stop, start and emergency pump from any control
- Remote control for ground operation
- Mounted without outriggers
- Mounting design maximising load clearance
- Aluminium inner boom
- Hydraulic levelling with bucket and ground controls
- Bucket overload sensor with acoustic warning
- Main operating switch in cabin
- Stop / Start / Emergency pump from any control
- Safety harness attachment
- Durable adjustable slide pads
- Interior line for air intake in the bucket
- Electrical interior line with socket in the bucket for 12 or 220 V
- Interior line for water outlet in the bucket
| MODELS | 110 |
|---|---|
| Maximum side reach | 7m |
| Maximum bucket capacity | 120kg |
| Lift weight without mounting material | 766kg |
| DEPENDING ON CARRIER VEHICLE | |
| Height at the bottom of the bucket | 9,30m |
| Working height | 11,30m |
| Transport height | 3,40m |
| RANGE OF MOVEMENT | |
| Telescopic boom articulation | -8° a 80° |
| Telescopic section extension | 2,30m |
| Rotation | Non-continuous 360º |

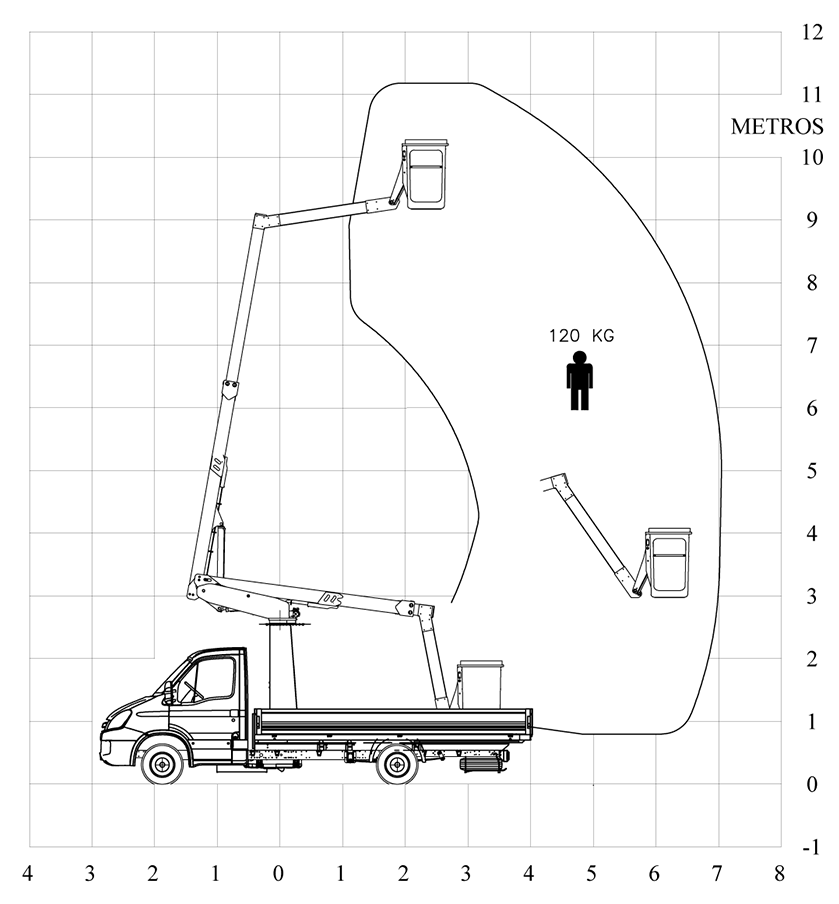

REACH
