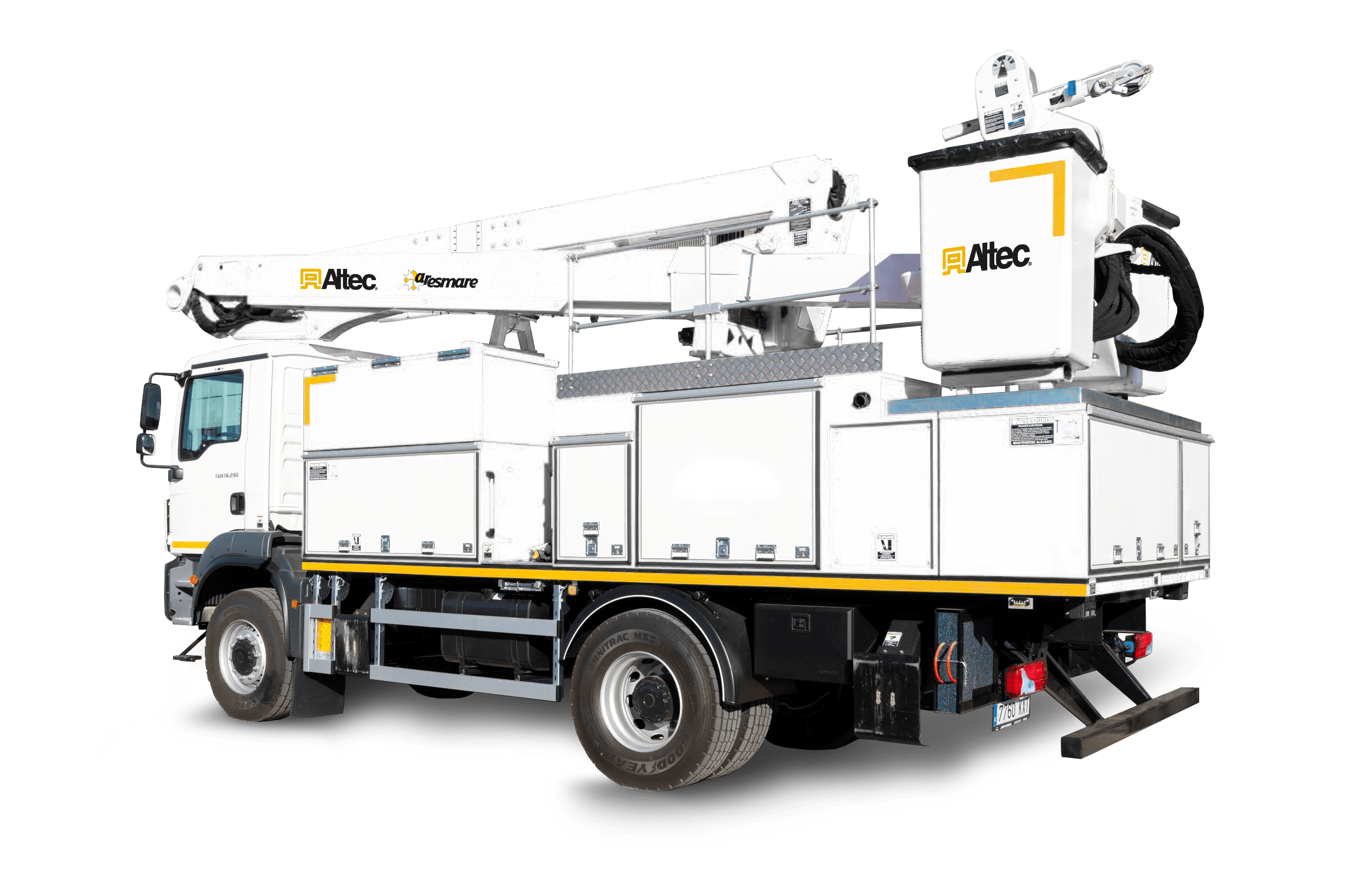

Insulated aerial devices
Telescopic Articulating SERIES
The most versatile aerial devices on the market
Altec has infinite configurations, with work heights of up to 22 m to adapt to all work needs. Check out all the features of the Altec models we propose at Aresmare.
Insulated aerial devices
Telescopic Articulating SERIES
The most versatile aerial devices on the market
Altec has infinite configurations, with work heights of up to 22 m to adapt to all work needs. Check out all the features of the Altec models we propose at Aresmare.
- Work heights up to 20.2 m
- Side reach up to 12.7 m
- Optional ARM system
- Bucket load capacity constant and independent of the load capacity of the jib
- No preventive maintenance that involves dismantling the unit
- Superior control with 4 functions
- CE Declaration of Conformity / ANSI 92.2
- Altec ISO-Grip® Control System
This patented system has a high electrical resistance controller that offers limited secondary dielectric protection for the operator. - Fibre insulating section in upper and lower boom
- Continuous rotation
- Articulated arm with compensated upper boom
- Hydraulic rotation of bucket
- Open centre hydraulic system
- Boom / outrigger interlock
- Outrigger movement alarm
- Powder coated before assembly
- Two sets of circuits for hydraulic tools
- Quick connectors for pressure diagnosis
- Emergency stop valves on upper and lower controls
- ANSI Category C insulation up to 46 kV
- Insulation Category B 69 kV
- ARM system
- Material handling jib with hydraulic extension
- Emergency electrical lowering system
- Engine start/stop module
- Material handling jib
- Liner
- Work heights up to 20.2 m
- Side reach up to 12.7 m
- Optional ARM system
- Bucket load capacity constant and independent of the load capacity of the jib
- No preventive maintenance that involves dismantling the unit
- Superior control with 4 functions
- CE Declaration of Conformity / ANSI 92.2
- Altec ISO-Grip® Control System
This patented system has a high electrical resistance controller that offers limited secondary dielectric protection for the operator. - Fibre insulating section in upper and lower boom
- Continuous rotation
- Articulated arm with compensated upper boom
- Hydraulic rotation of bucket
- Open centre hydraulic system
- Boom / outrigger interlock
- Outrigger movement alarm
- Powder coated before assembly
- Two sets of circuits for hydraulic tools
- Quick connectors for pressure diagnosis
- Emergency stop valves on upper and lower controls
- ANSI Category C insulation up to 46 kV
- Insulation Category B 69 kV
- ARM system
- Material handling jib with hydraulic extension
- Emergency electrical lowering system
- Engine start/stop module
- Material handling jib
- Liner
| MODELS | TA50 | TA55 | TA60 |
|---|---|---|---|
| Work height | 18,1m | 19,6m | 21,3m |
| Side reach | 11,5m | 12,2m | 12,7m |
| Upper boom insulation | 4,6m | 4,6m | 4,6m |
| Lower boom insulation | 762mm | 762mm | 762mm |
| Double bucket capacity | 272,2kg | 272,2kg | 272,2kg |
| Arm articulation | 5,25° a 92,5° | 0° a 92,5° | 0° a 92,5° |
| Arm articulation | Continuous | Continuous | Continuous |
| MODELS | TA50 | TA55 | TA60 |
|---|---|---|---|
| Work height | 18,1m | 19,6m | 21,3m |
| Side reach | 11,5m | 12,2m | 12,7m |
| Upper boom insulation | 4,6m | 4,6m | 4,6m |
| Lower boom insulation | 762mm | 762mm | 762mm |
| Double bucket capacity | 272,2kg | 272,2kg | 272,2kg |
| Arm articulation | 5,25° a 92,5° | 0° a 92,5° | 0° a 92,5° |
| Arm articulation | Continuous | Continuous | Continuous |
