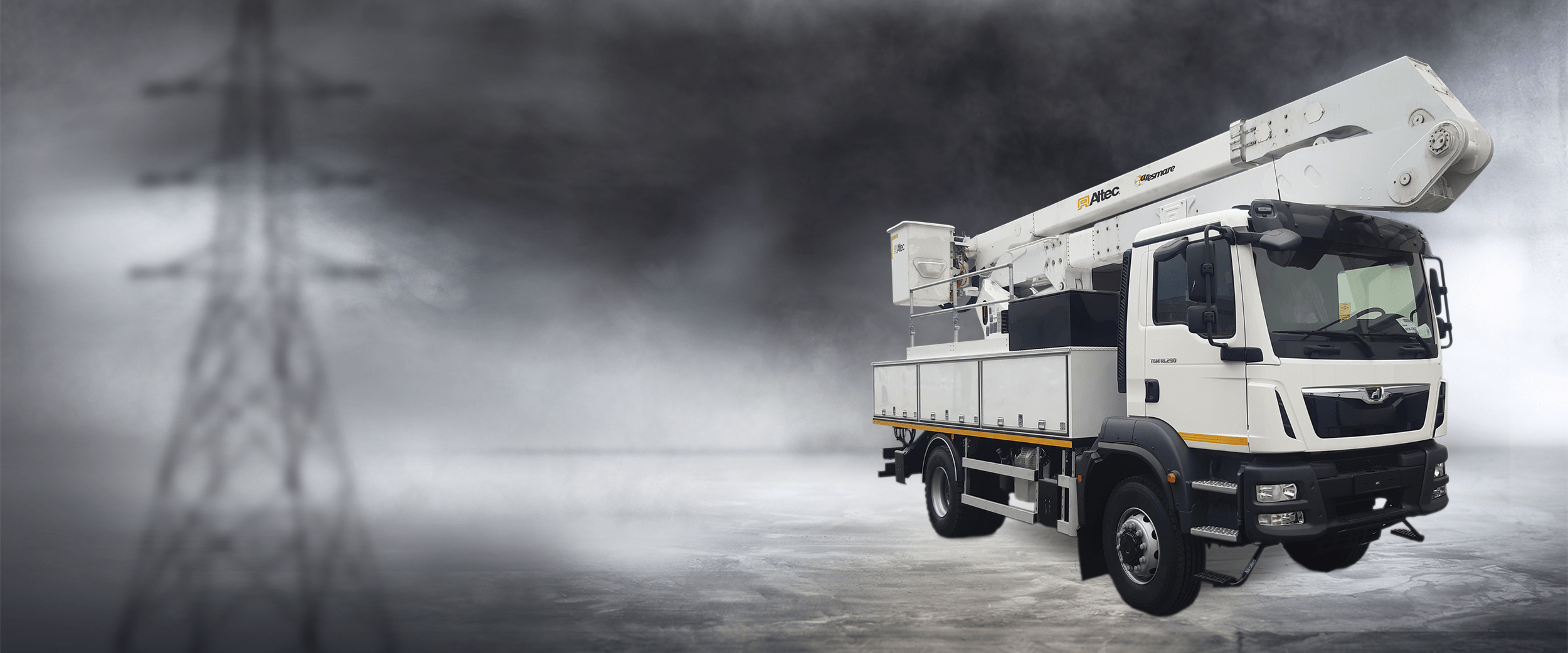

Insulated aerial devices
Overcenter SERIES
For jobs requiring extreme reach
The Overcenter Series stands out in the market for its exceptional reach, enabling operations within a range of 210º with the upper boom and 100º with the lower boom. This unique capability simplifies work in hard-to-reach areas without the need to move the truck, offering an efficient and versatile solution.

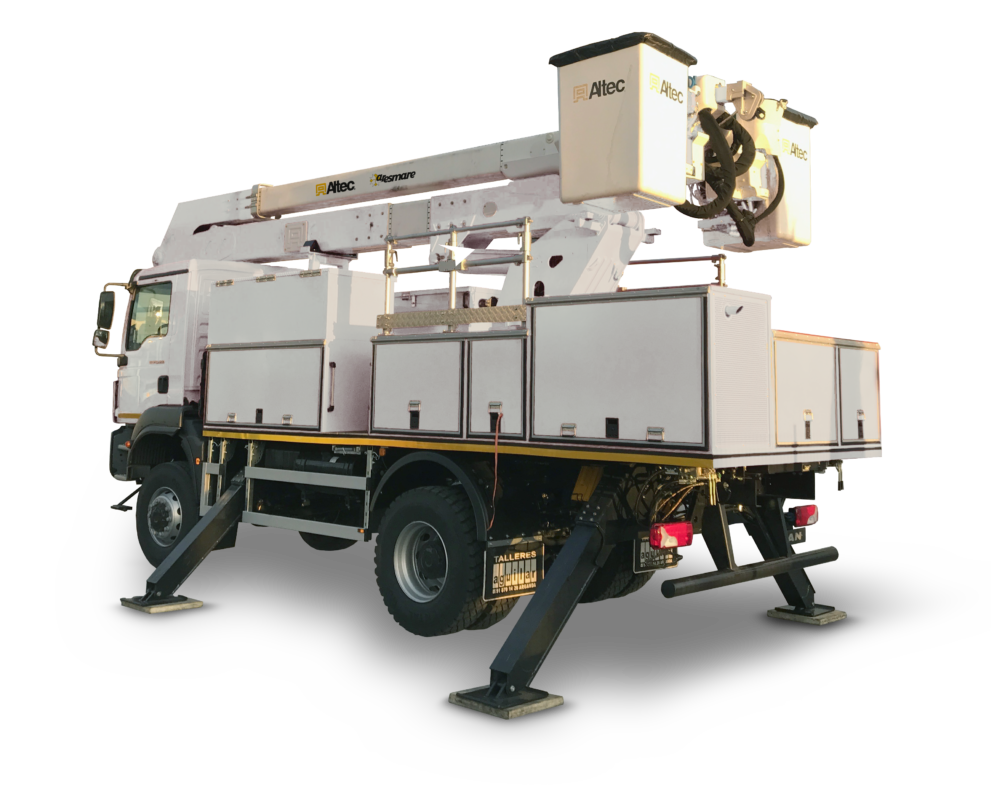

Check out the features of models A47-OC and A55-OC by Altec that Aresmare adapts to the truck of your choice.
Insulated aerial devices
Overcenter SERIES
For jobs requiring extreme reach
The Overcenter Series stands out in the market for its exceptional reach, enabling operations within a range of 210º with the upper boom and 100º with the lower boom. This unique capability simplifies work in hard-to-reach areas without the need to move the truck, offering an efficient and versatile solution.
Check out the features of models A47-OC and A55-OC by Altec that Aresmare adapts to the truck of your choice.
- Work heights up to 18.7 m
- Side reach up to 15.2 m
- Hydraulic bucket levelling system
- Low maintenance cost
- Load capacity of up to 454 kg minimum in any working position
- Automatic upper boom stowing system
- CE Declaration of Conformity / ANSI 92.2
- Altec ISO-Grip® Control System
This patented system has a high electrical resistance controller that offers limited secondary dielectric protection for the operator. - Designed and manufactured in ISO 9001 certified facilities
- Insulation Category C 46 kV
- Lower boom insulator
- Continuous rotation
- Stowage protection system
- Rear mounted platform 610x762x1067 mm
- Continuous purging of the upper controls
- Pilot-operated closed-centre hydraulic system
- Double hydraulic circuit in the tool bucket, adjustable in pressure and flow
- Boom/outrigger interlock
- Outrigger movement alarm
- Insulation Category B 69 kV
- Emergency electrical lowering system
- Engine start/stop module
- Material handling jib
- Hydraulically extendable jib
- Liner
- Work heights up to 18.7 m
- Side reach up to 15.2 m
- Hydraulic bucket levelling system
- Low maintenance cost
- Load capacity of up to 454 kg minimum in any working position
- Automatic upper boom stowing system
- CE Declaration of Conformity / ANSI 92.2
- Altec ISO-Grip® Control System
This patented system has a high electrical resistance controller that offers limited secondary dielectric protection for the operator. - Designed and manufactured in ISO 9001 certified facilities
- Insulation Category C 46 kV
- Lower boom insulator
- Continuous rotation
- Stowage protection system
- Rear mounted platform 610x762x1067 mm
- Continuous purging of the upper controls
- Pilot-operated closed-centre hydraulic system
- Double hydraulic circuit in the tool bucket, adjustable in pressure and flow
- Boom/outrigger interlock
- Outrigger movement alarm
- Insulation Category B 69 kV
- Emergency electrical lowering system
- Engine start/stop module
- Material handling jib
- Hydraulically extendable jib
- Liner
| MODELS | A47-OC | A55-OC |
|---|---|---|
| Work height | 17,4m | 19,8m |
| SIDE REACH | ||
| Overcenter upper boom with 0° lower boom | 12,9m | 15,2m |
| Non-overcenter upper boom with lower boom in limit position | 10m | 11,3m |
| BUCKET CAPACITY | ||
| Two single buckets (load per bucket) | 181,4 kg | 181,4 kg |
| Double bucket | 362,9 kg | 362,9 kg |
| Upper boom articulation | 210° | 210° |
| Lower boom articulation | 97° | 100° |
| REACH | A | B | C | D |
|---|---|---|---|---|
| MODELS | Platform height |
Non-overcenter side reach |
Overcenter side reach |
From the platform to the ground |
| A47-OC | 14,2m | 9,2m | 12,4m | 8,2m |
| A55-OC | 16,7m | 10,8m | 14,7m | 9,3m |
