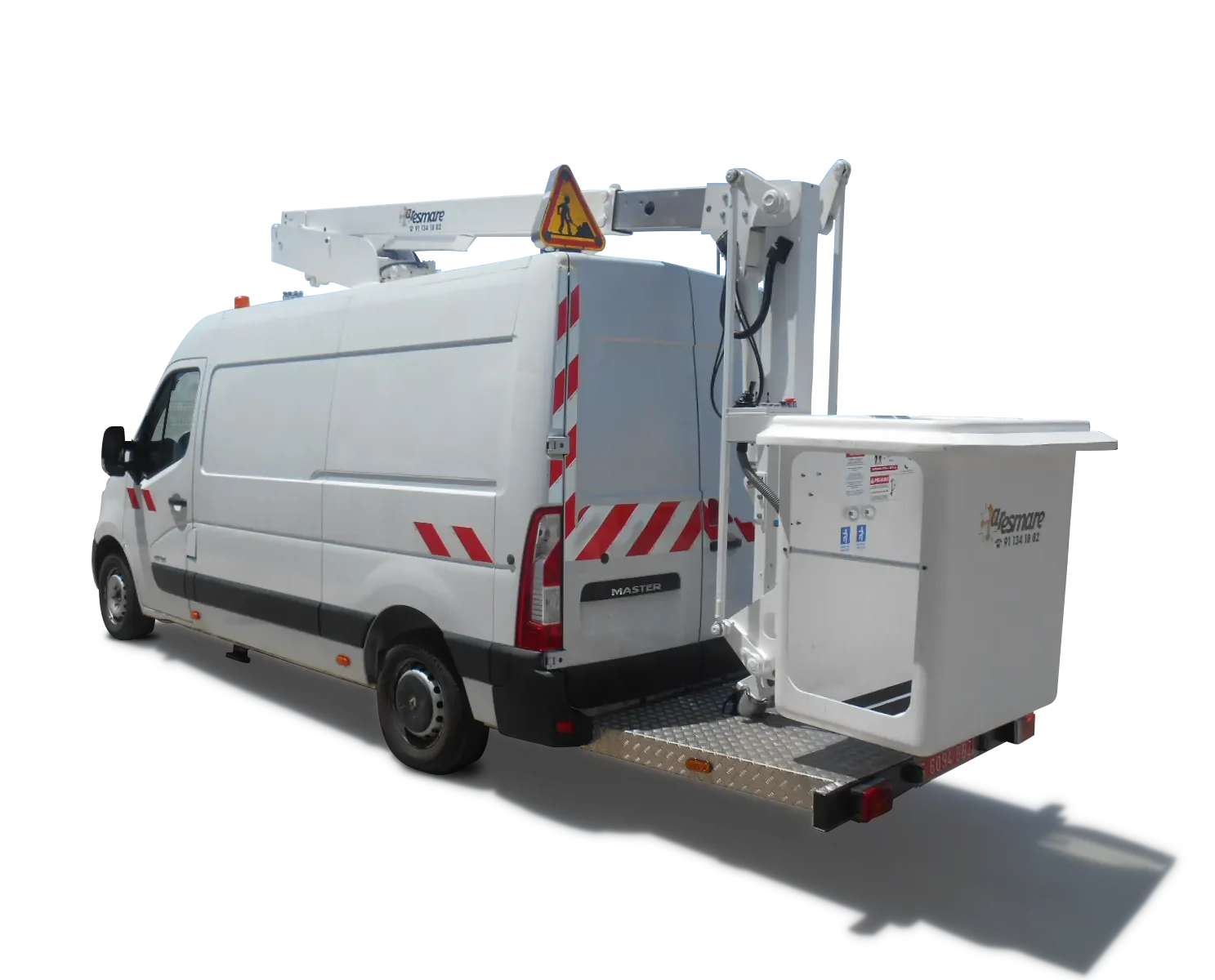

Bucket Truck
Model AR130
Versatility and mobility
Model 130 stands out for its side reach of 8.35 m and bucket capacity (up to 200 kg) for 2 operators, in addition to reaching working heights of 14 m. It’s the optimal solution for carrying out quick maintenance works in urban or difficult-to-access areas.
- Work heights of up to 14 m
- Lightweight, sturdy fibreglass bucket
- Bucket capacity: 200 kg (2 persons)
- Minimum preventive maintenance
- 360º rotation
- Hydraulic levelling of bucket
- Exclusive spray painting system (SPPA) of each part prior to assembly
- Electric emergency pump
- Two controls, in bucket and on the ground, fully electrically operated
- Stop, start and emergency pump from any control
- Remote control for ground operation
- Assembly with only a pair of telescopic outriggers in A
- Mounting design maximising cargo clearance
- Aluminium inner boom
- Hydraulic levelling with bucket and ground controls
- Bucket overload sensor with acoustic warning
- Telescopic outriggers in A with 2 versions: truck and chassis cabin
- In the cabin: main operating switch, switches to activate the outriggers, outrigger/boom interlock, position indicators and warning lights
- Stop / Start / Emergency pump from any control
- Safety harness attachment
- Durable adjustable slide pads
- Interior line for air intake in the bucket
- Electrical interior line with socket in the bucket for 12 or 220 V
- Interior line for water outlet in the bucket
- Set of nylon shims to support the outriggers
- Work heights of up to 14 m
- Lightweight, sturdy fibreglass bucket
- Bucket capacity: 200 kg (2 persons)
- Minimum preventive maintenance
- 360º rotation
- Hydraulic levelling of bucket
- Exclusive spray painting system (SPPA) of each part prior to assembly
- Electric emergency pump
- Two controls, in bucket and on the ground, fully electrically operated
- Stop, start and emergency pump from any control
- Remote control for ground operation
- Assembly with only a pair of telescopic outriggers in A
- Mounting design maximising cargo clearance
- Aluminium inner boom
- Hydraulic levelling with bucket and ground controls
- Bucket overload sensor with acoustic warning
- Telescopic outriggers in A with 2 versions: truck and chassis cabin
- In the cabin: main operating switch, switches to activate the outriggers, outrigger/boom interlock, position indicators and warning lights
- Stop / Start / Emergency pump from any control
- Safety harness attachment
- Durable adjustable slide pads
- Interior line for air intake in the bucket
- Electrical interior line with socket in the bucket for 12 or 220 V
- Interior line for water outlet in the bucket
- Set of nylon shims to support the outriggers
| MODELS | 130 |
|---|---|
| Maximum side reach | 8,35m |
| Maximum bucket capacity | 200kg |
| Lift weight without mounting material | 872kg |
| DEPENDING ON CARRIER VEHICLE | |
| Height at the bottom of the bucket | 11,4m |
| Working height | 13,5m |
| RANGE OF MOVEMENT | |
| Telescopic boom articulation | -8° a 80° |
| Arm articulation | -90° a 20° |
| Telescopic section extension | 2,30m |
| Rotation | Non-continuous 370° |

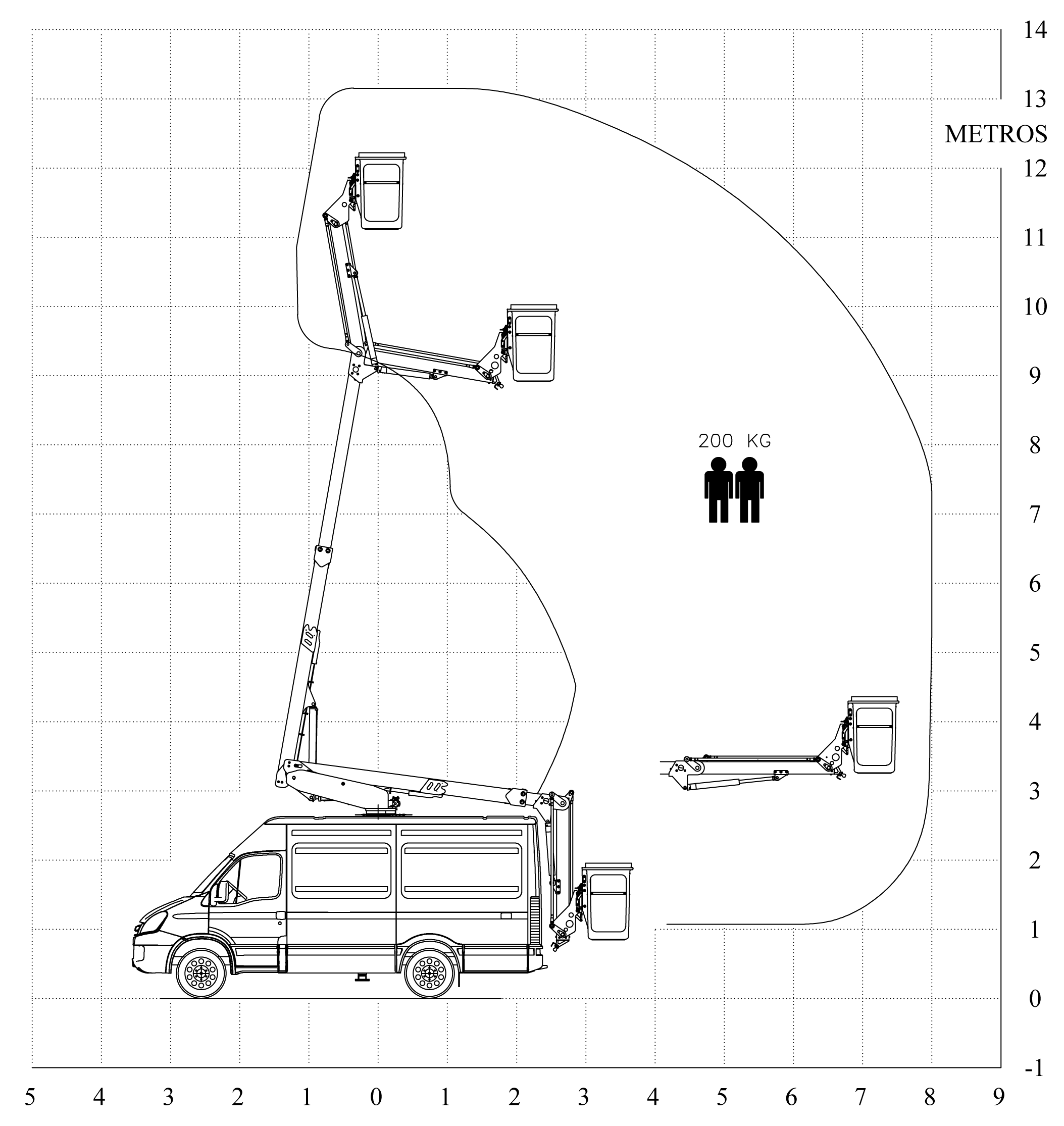

REACH
